Custom Filter Capabilities

Our advanced, efficient processes allow us to create radio filters that are customed to your needs with first pass success

Bandpass RF Filters

Designs have been proven with the following specifications:

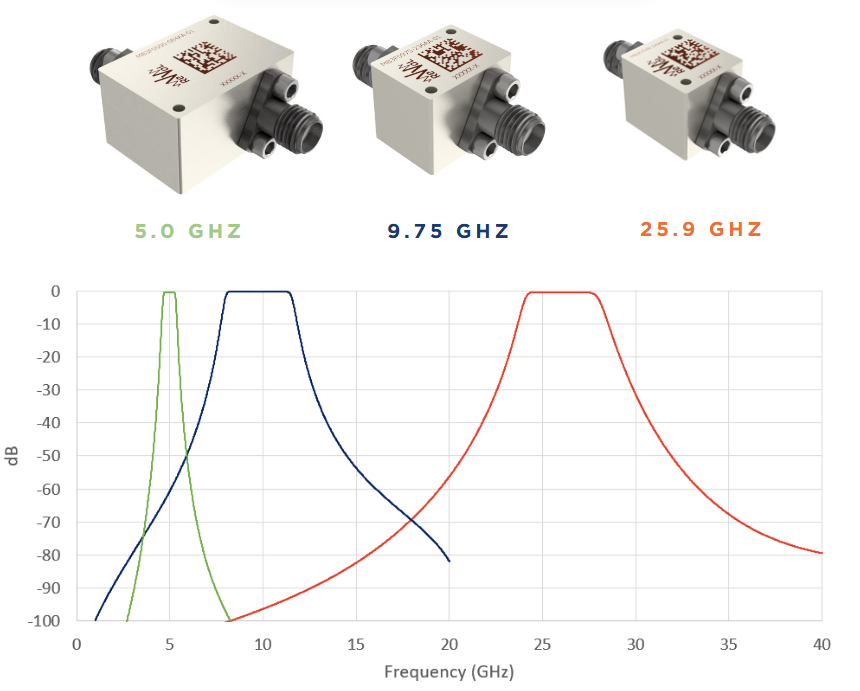

Three satellite frequency block filters with different GHz ratings (5.0 GHz, 9.75 GHz, 25.9 GHz) and a graph showing their respective frequency response curves in dB, plotted against frequency in GHz.

Center Frequency

2 to 30 GHz

Higher and lower frequencies possible

Bandwidth

8 % to 32 %

Wider and narrower bandwidths possible

Poles

4 to 10

Additional poles achievable

Why work with Revvol for your custom filters?

  • Our experience designing filters with first-pass success along with our rapid manufacturing process provides our customers with the option to receive custom designs with a quick turnaround.

  • Our engineering team has decades of experience developing military and aerospace wireless systems and component technologies.

  • Due to our novel microfabrication process, Revvol Technologies can create new, custom RF bandpass filter designs without the typical high tooling cost.

  • Revvol’s design and engineering team has vast product and process development experience. Our innovative team will work with you meet your RF filter specifications with high efficiency.

Contact us

Let us know the specifications you desire and we’ll work with you to make it happen.
